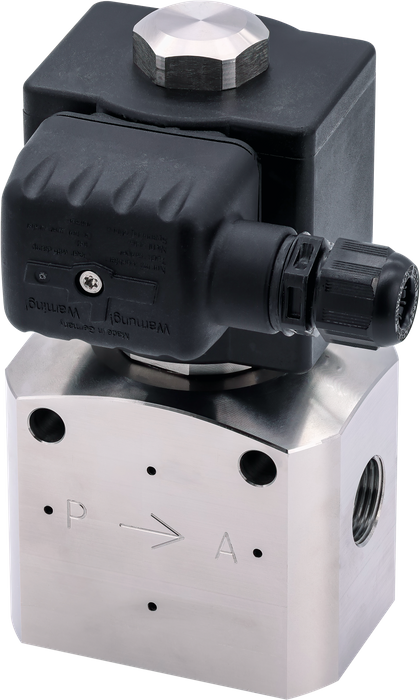

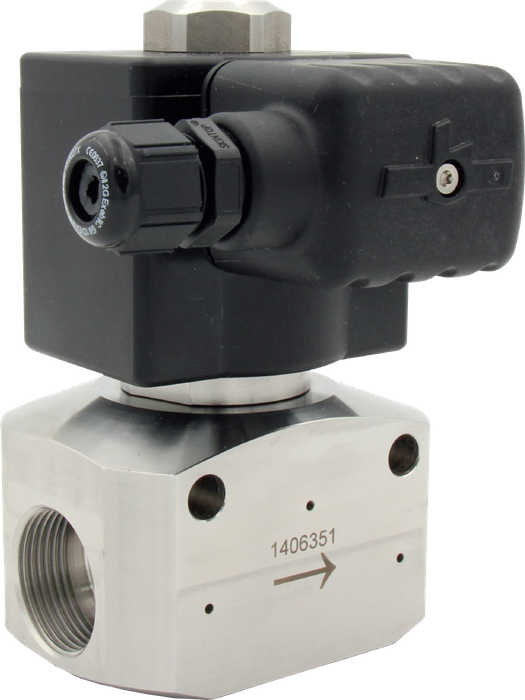

Series 83830/83840 – High pressure solenoid valve DN 8 & DN 13 with integrated check-valve

IMI Stand: 527
  • Series 83830/83840 – High pressure solenoid valve  DN 8 & DN 13 with  integrated check-valve
  • Series 83830/83840 – High pressure solenoid valve  DN 8 & DN 13 with  integrated check-valve
Series 83830/83840 – High pressure solenoid valve  DN 8 & DN 13 with  integrated check-valve Series 83830/83840 – High pressure solenoid valve  DN 8 & DN 13 with  integrated check-valve
  • Maximum inlet pressure: 1,050 bar
  • Function: 2/2 normally closed
  • No internal or external soft sealing
  • Operating pressure range: 10 … 1050 bar
  • Burst pressure: 3.000+ bar
  • Port size: 13/16-16 UNF and 3/4-14 NPS cone &
    thread for MP tubing
  • Material: All fluid wetted, pressure retaining parts
    made from 316L / 1.4404
  • Ambient temperature: –45 … +55°C
  • Minimum fluid temperature: –50°C
    (Pre-cooling ready)
  • Voltage: 24 V d.c., 100% ED., IP66, 16 W
  • Eliminates the need for pilot gas systems
  • Ex: II 2G EX eb mbIIC T4 Gb;
    II 2D EX mb tbIIB T125°C Db
  • PED: Article 4, chapter 3
  • Optional: Integrated check-valve
