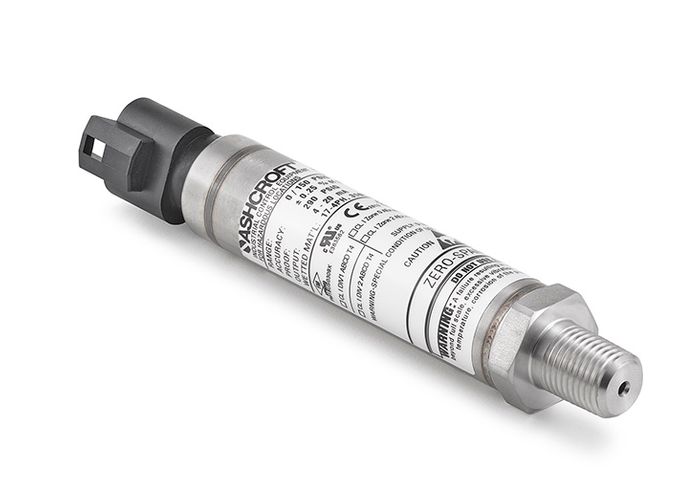

Ashcroft® E2S Explosion Proof Pressure Transducer
)
The Ashcroft® E2S pressure transducer features:
- Ashcroft’s proven thin film technology
- +/-0.25%, +/- 0.50% or +/-1.0% of span accuracy available
- Standard ranges from vacuum to 20,000 psi and 0 to 500 psia (custom ranges available)
- Rugged 316 stainless steel Housing
- Diaphragm available in 17-4 PH, 316L stainless steel or A286
- FM, CSA, ATEX and IECEx intrinsically safe approvals
- FM and CSA non-incendive approvals
- 4-20mA or multiple Voltage outputs available
- External magnetic offset and span adjustment
- CE approved
- SIL 3 Capable
- RoHS compliant
)
)
)
)
